PIPE STRUCTURE

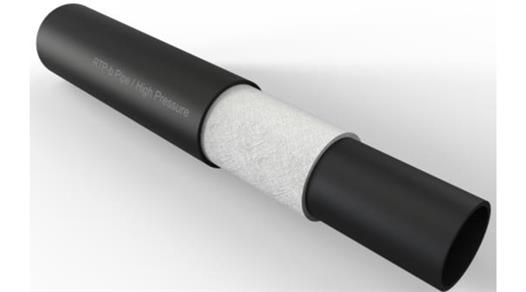

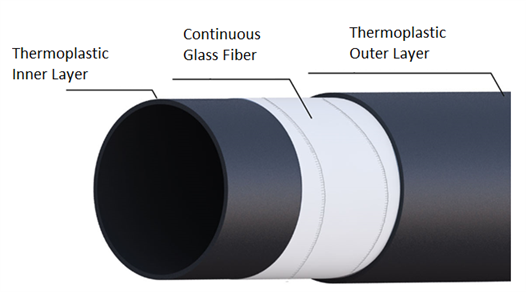

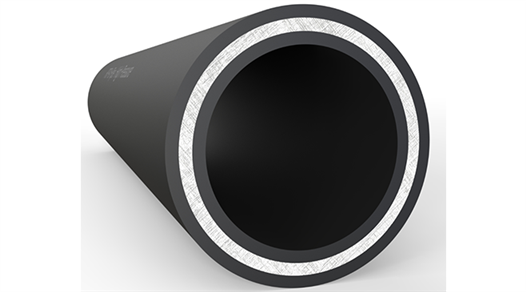

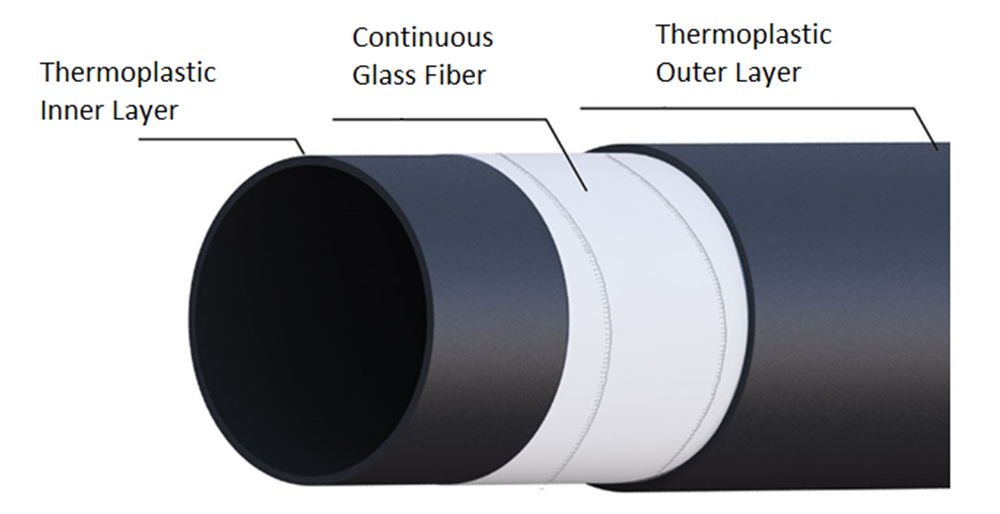

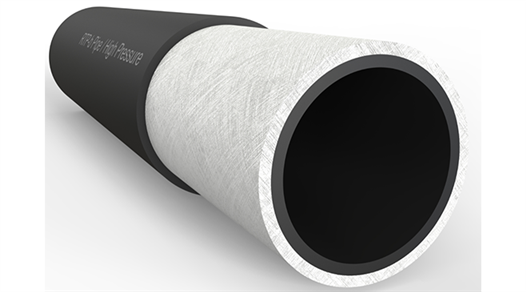

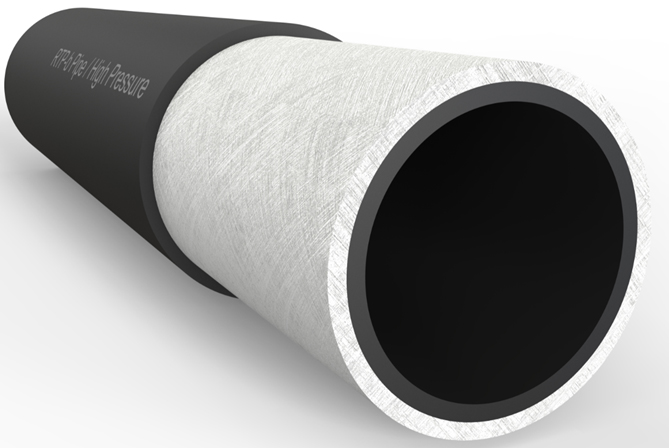

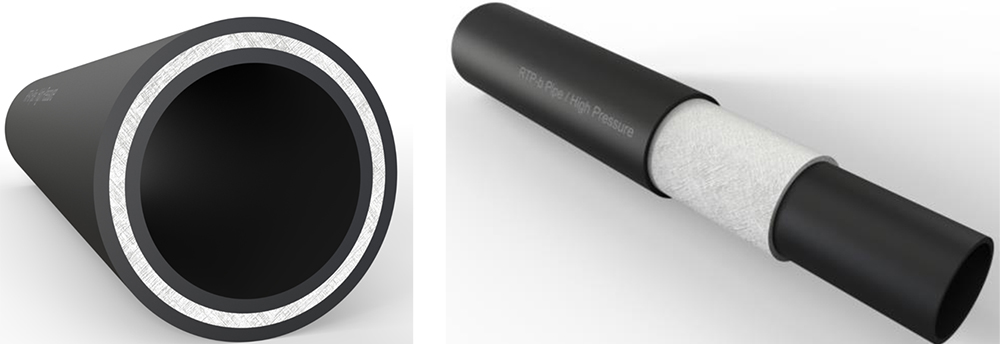

Bogenn RTP (Reinforced Thermoplastic Pipe) Pipes have a three layered hybrid structure. While the inner and outer layer of the pipe is thermoplastic, the middle layer consists of high-strength composite material. Thermoplastic layer can be designed with different materials such as HDPE, PP, PE-RT according to project requirements. Continuous fiber reinforcement layer in the middle layer can also be designed in different materials such as glass fiber, aramid, carbon fibre etc. according to project requirements.
PRODUCTION STANDARDS
The production of Bogenn RTP Pipes is based on the following standards.
API 15 S Wound Thermoplastic Pipes
DNVGL–RP-F119 Thermoplastic Composite Pipes
ASTM F2896 Reinforced Polyethylene Composite Pipes
ISO TS 18226 Reinforced Thermoplastic Pipes
TSE K 166 Thermoplastic Composite Pipes
DIN EN 12201 Polyethylene Pipes
PRODUCTION RANGE
Bogenn RTP Pipes are manufactures within the range of Ø90 – 1200 mm.
PRESSURE CLASS
Bogenn RTP Pipes are manufactured within the pressure range of PN10 – PN200.
COLOR
Bogenn RTP Pipes are manufactured in black colour.
AREAS OF USAGE
Bogenn RTP Pipes can be used in the following areas of application.
- High pressure water lines
- Natural gas transmission and distribution lines.
- Oil transmission lines
- Geothermal water transportation lines
- Offshore applications

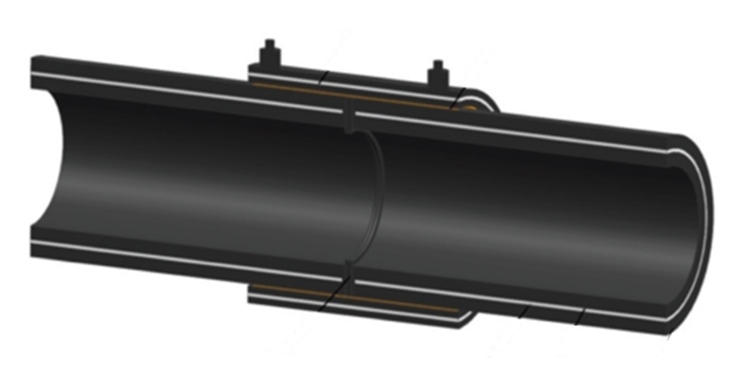

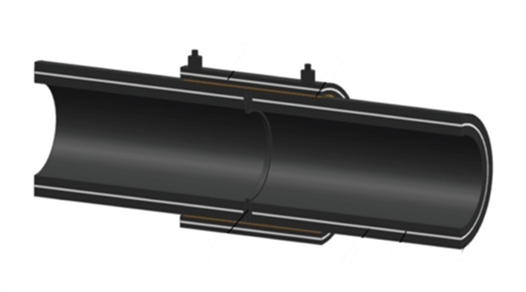

CONNECTION METHOD
Different connection methods are preferred in the connection of Bogenn RTP Pipes according to project requirements. These connection methods are summarized below.
- EF (Electro-fusion) Connection (< 40 Bar)
- EF + Butt-welding Connection (< 80 Bar)
- Mechanical Connection (< 200 Bar)
